MONITORING TECHNOLOGY
Monitoring Principle
The safety monitoring system based on distributed optical fiber sensing can be applied to the four fields of intrusion early warning, leakage monitoring, broken wire monitoring and settlement measurement, which can effectively capture the events that threaten the safety of the pipeline, and accurately locate them. At the same time, it can identify the event type and evaluate the hazard level of the event. It provides a reliable solution for real-time monitoring and regular detection of pipeline safety.
The system is jointly developed by our company and Tianjin Precision Testing Company. It has the technical advantages of real-time response, accurate positioning, online analysis, classification early warning, data backtracking, safety and reliability, etc. At the same time, the system functions support flexible customization, and some or all functions can be selected according to customer needs.

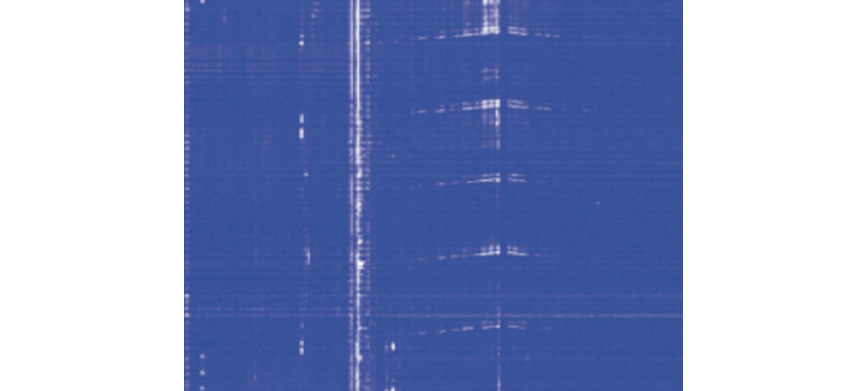

Signal Example
Leakage signal
Intrusion signal
PCCP broken wire signal
Application Scenarios
01-Intrusion Alert
02-Leak Monitoring

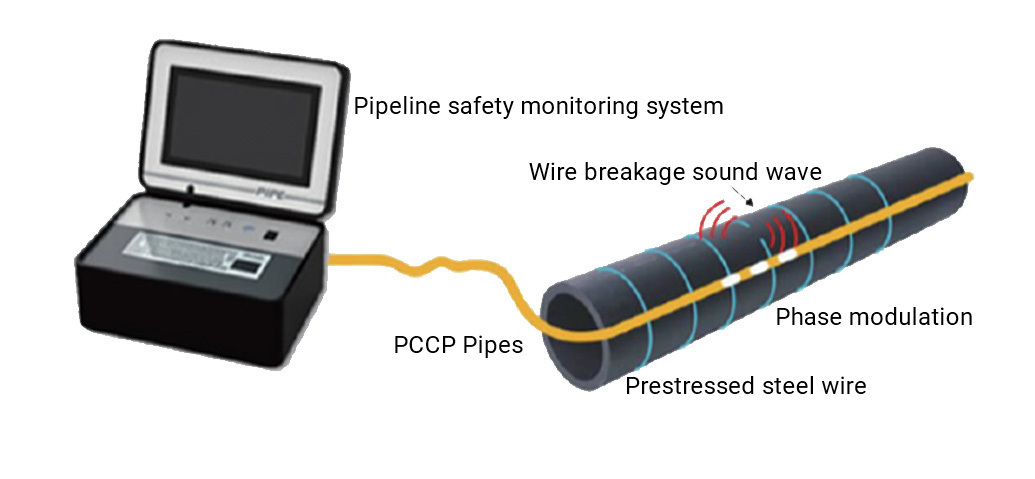

03 -- Broken wire monitoring
04-Settlement measurement
Distributed Optical Fiber Pipeline Safety Early Warning System
Equipment features
● Super-long monitoring real-time alarm strategizing
A single set of equipment covers 50 kilometers, responds to safety incidents in seconds, and grasps pipeline safety information in real time.
● Accurate positioning and layout are convenient to win thousands of miles
Meter-level positioning accuracy, the use of the same trench communication cable redundant optical fiber, remote control decision-making.
● Morphological identification to distinguish the threat level
Feature extraction, pattern recognition, big data, artificial intelligence, AI-assisted threat event type determination and classification
Technical indicators
● Application areas: intrusion warning, leakage monitoring, broken wire monitoring, settlement measurement
● Monitoring physical quantities: vibration, temperature, settlement
● Vibration sensitivity: manual excavation 1m, mechanical 10m
● Temperature resolution: ± 0.1 ℃
● Monitoring distance: 35km under typical working conditions, 50km limit
● Event location accuracy: ± 1m
● Strain resolution: 20με
● Characteristics: passive, corrosion resistance, anti-electromagnetic interference
