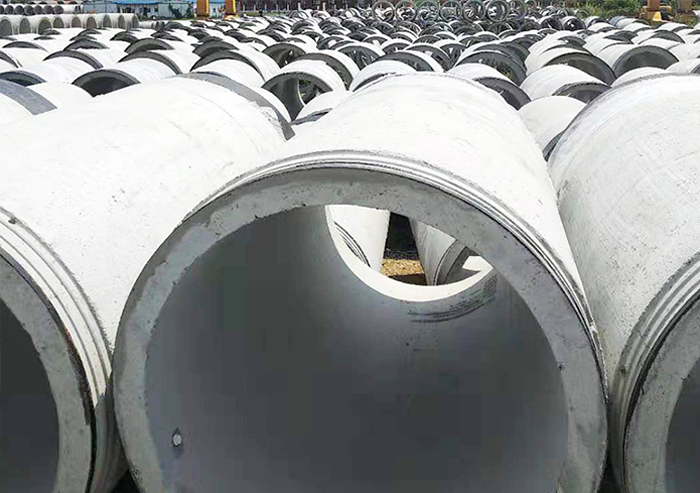

Reinforced concrete drainage pipe (DRCP) for jacking construction method

Classification:

Concrete pipe

Product recommendation Online consultation

Product Description

Nominal inner diameter D mm	Design effective length L/mm ≥	Design wall thickness F/mm>	Stage 1 pipe			Class II pipe			Old stage pipe
Nominal inner diameter D mm	Design effective length L/mm ≥	Design wall thickness F/mm>	Crack load/ (kN/m)	Failure load/ (kN/m)	Internal water pressure/MPa	Crack load/ (kN/m)	Failure load/ (kN/m)	Internal water pressure/MPa	Crack load/ (kN/m)	Failure load/ (kN/m)	Internal water pressure/MPa
300	1000	3 0	15	2	0.06	19	29	0.10	27	41	0.10
400		Yau	17	3 8		27	41		35	53
500		3	21	2		32	48		44	68
600		60	25	38		40	60		53	80
700		70	28	42		47	71		62	93
800	2000	80	33	50		54	81		71	107
900		90	37	56		61	92		80	120
1000		100	40	60		67	100		89	134
1100		110	44	66		74	110		98	147
1200		120	48	72		80	120		107	161
1350		135	55	83		90	135		122	183
1400		140	57	86		93	140		126	189
1500		150	60	90		100	150		135	203
1600		160	64	%6		106	160		144	216
1650		165	66	99		110	165		148	222
1800		180	72	108		120	180		162	243
2000		200	80	120		134	200		180	270
2200		220	88	132		146	220		196	294
2400		230	96	144		158	238		212	318
2600		245	104	156		172	258		228	342
2800		255	112	168		185	278		244	366
3000		275	120	180		198	298		260	390
3200		290	128	192		211	317		276	414
3400		310	136	204		221	332		292	438
3500		320	140	210		228	342		300	450
3600		330	-	-		234	351		306	459
3800		340	-	-		242	363		320	480
4000		350	-	-		250	375		332	498
Note: According to the needs of the project, the pipes with other specifications, external pressure load and internal water pressure inspection index can also be produced after negotiation between the supply and demand sides.
