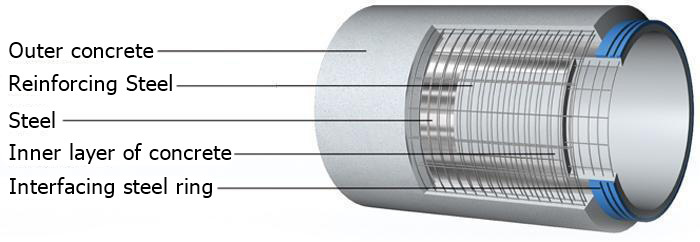

Non-prestressed concrete cylinder pipe
Classification:
Product Description
Specification and size of non-prestressed steel cylinder concrete pipe (slotting construction RCCP/jacking construction JCCP) (double rubber ring joint)
| Nominal inner diameter Do mm | Pipe wall thickness t mm | Minimum thickness of steel cylinder ty mm | bell depth C mm | Socket length E mm | Inner diameter of bell working face Bb mm | Outer diameter of socket working face Bsmm | Clearance in joint J mm | Outer clearance of joint K mm | Diameter of rubber ring dj mm | Effective length Lo mm | Pipe length L mm | Reference weight t/m |
| 1000 | 120 | 1.5 | 160 | 150 | 1133 | 1133 | 25 | 15 | 20 | 2500 3000 5000 6000 | 2635 3135 5135 6135 | 1.06(1.08) |
| 1200 | 120(130) | 1303 | 1303 | 1.24(1.36) | ||||||||
| 1400 | 120(140) | 1503 | 1503 | 1.43(1.69) | ||||||||
| 1600 | 130(160) | 1703 | 1703 | 1.77(2.21) | ||||||||
| 1800 | 150(180) | 1903 | 1903 | 2.30(2.80) | ||||||||
| 2000 | 170(200) | 2103 | 2103 | 2.90(3.46) | ||||||||
| 2200 | 180(220) | 2313 | 2313 | 3.36(4.18) | ||||||||
| 2400 | 200(240) | 2513 | 2513 | 4.08(4.98) | ||||||||
| 2600 | 220(260) | 2713 | 2713 | 4.87(5.84) | ||||||||
| 2800 | 230(280) | 2923 | 2923 | 5.47(6.77) | ||||||||
| 3000 | 250(300) | 3143 | 3143 | 6.38(7.78) | ||||||||
| 3200 | 270(320) | 3343 | 3343 | 7.36(8.85) | ||||||||
| 3400 | 280(340) | 3553 | 3553 | 8.09(9.99) | ||||||||
| 3600 | 300(360) | 1.5 | 180 | 170 | 3763 | 3763 | 30 | 20 | 22 | 2500 3000 5000 | 2650 3150 5150 | 9.19(11.20) |
| 3800 | 320(380) | 3973 | 3973 | 10.35(12.48) | ||||||||
| 4000 | 340(400) | 4183 | 4183 | 11.59(13.82) |
Note: 1) The brackets are used for jacking construction pipe type: 2) When the effective length is 5000mm and 6000mm, it is only used in slotted construction pipe type.
