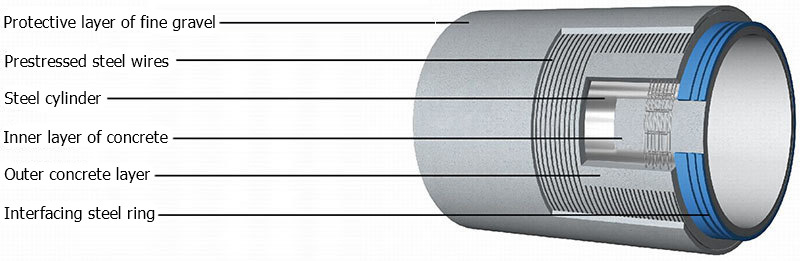

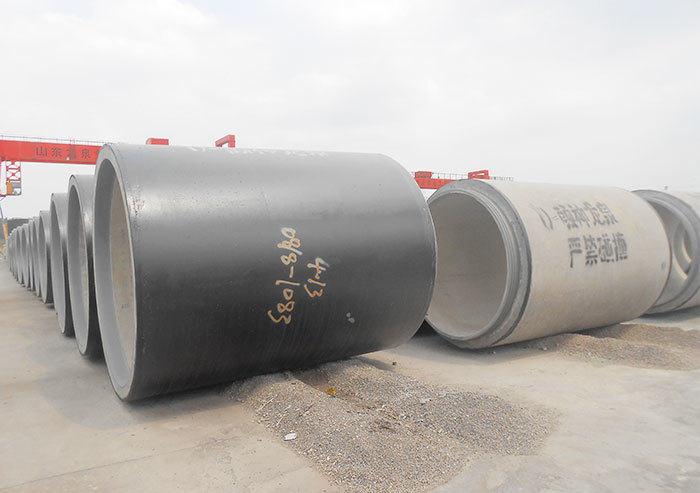

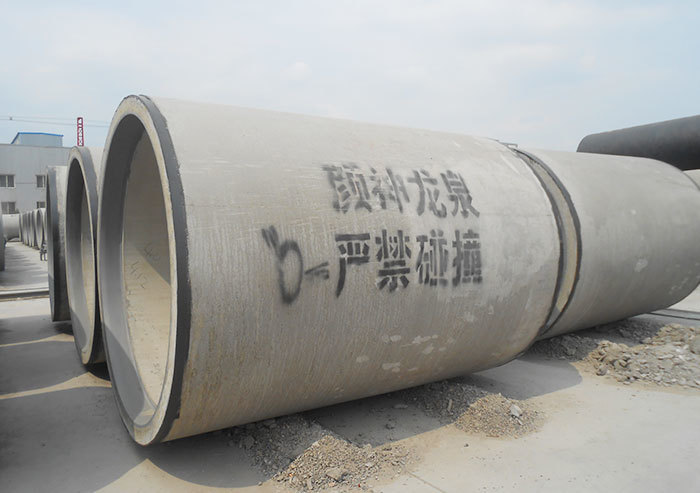

Prestressed steel cylinder concrete pipe for jacking construction method
Classification:
Product Description
Basic dimensions of pre-stressed steel cylinder concrete pipe (JPCCP) for jacking construction method Unit/mm
| Nominal inner diameter Do /(mm) | Minimum die thickness tc /(mm) | Net thickness of protective layer/(mm) | Thickness of steel cylinder ty /(mm) | bell depth C /(mm) | Socket length E /(mm) | Inner diameter of bell working face Bb /(mm) | Outer diameter of working face of socket Bs /(mm) | Joint internal clearance J /(mm) | External clearance of joint K /(mm) | Diameter of rubber ring d /(mm) | Effective length Lo /(mm) | Pipe length L /(mm) |
| 1000 | 95 | 35 | 1.5 | 160 | 150 | 1093 | 1093 | 25 | 15 | 20 | 2500 3000 | 2635 3135 |
| 1000 | 100 | 1133 | 1133 | |||||||||
| 1200 | 95 | 1292 | 1292 | |||||||||
| 1200 | 120 | 1353 | 1353 | |||||||||
| 1400 | 105 | 1503 | 1503 | |||||||||
| 1600 | 125 | 1703 | 1703 | |||||||||
| 1800 | 145 | 1903 | 1903 | |||||||||
| 2000 | 165 | 2103 | 2103 | |||||||||
| 2200 | 180 | 40 | 2313 | 2313 | ||||||||
| 2400 | 200 | 2513 | 2513 | |||||||||
| 2600 | 220 | 2713 | 2713 | |||||||||
| 2800 | 240 | 2923 | 2923 | |||||||||
| 3000 | 250 | 3143 | 3143 | |||||||||
| 3200 | 260 | 3343 | 3343 | |||||||||
| 3400 | 270 | 3553 | 3553 | |||||||||
| 3600 | 280 | 3763 | 3763 | |||||||||
| 3800 | 290 | 3973 | 3973 | |||||||||
| 4000 | 300 | 4183 | 4183 |
