PVC lined prestressed steel cylinder concrete pipe
Classification:
Product Description

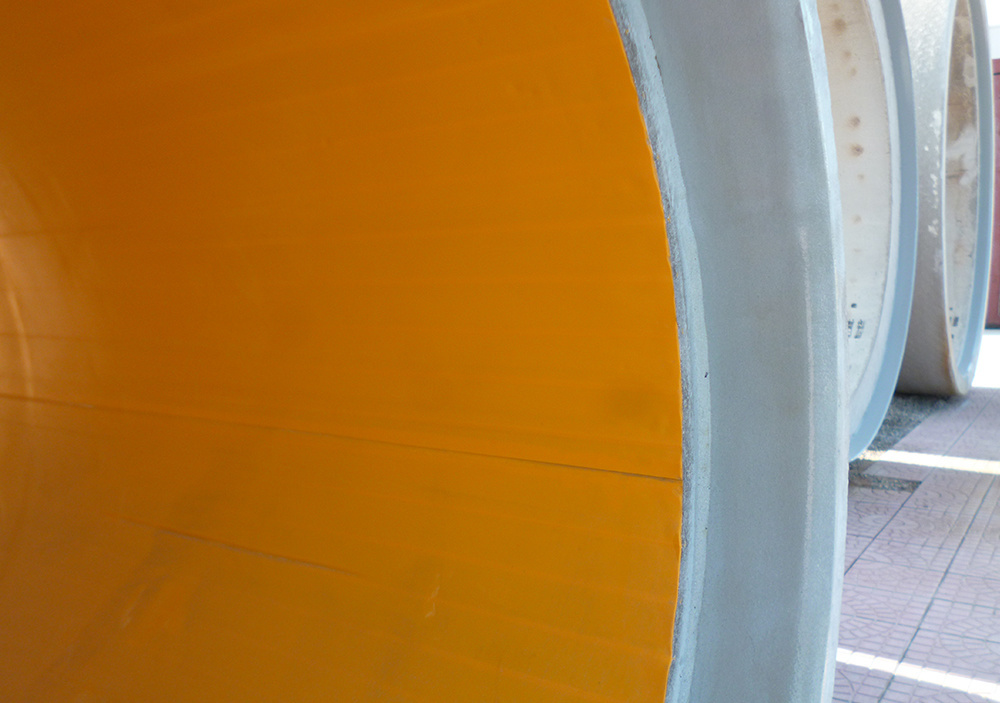

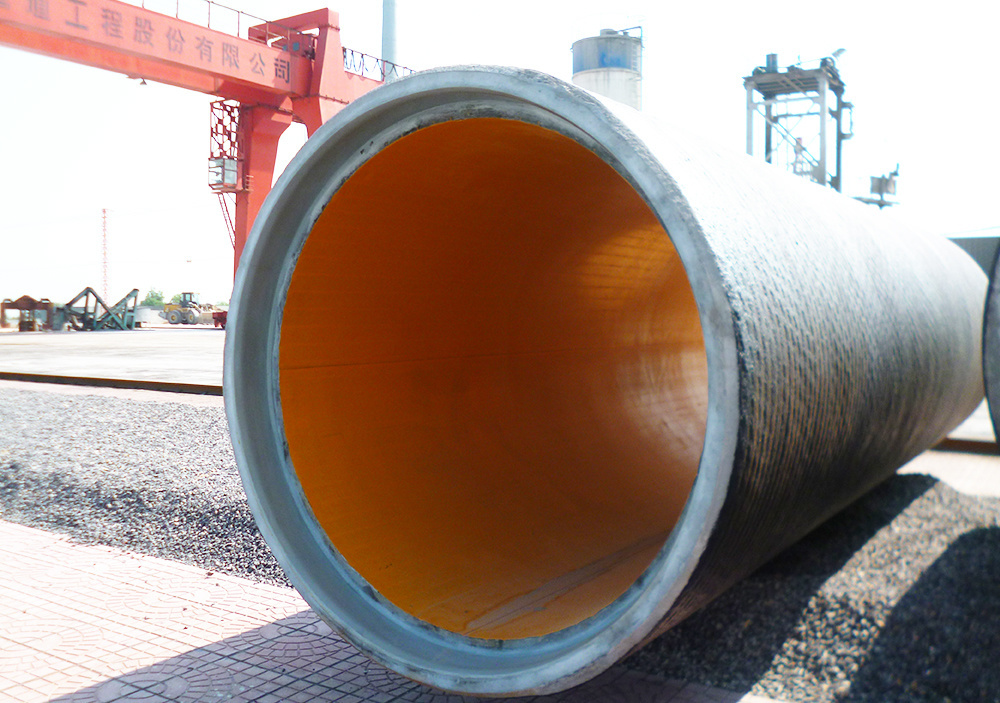

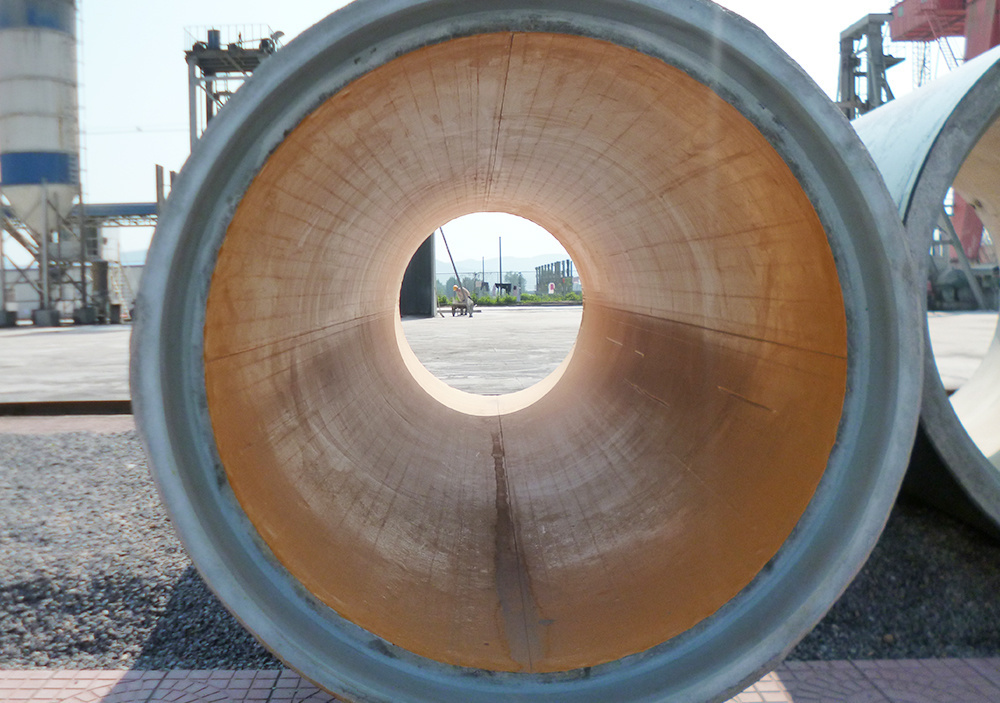

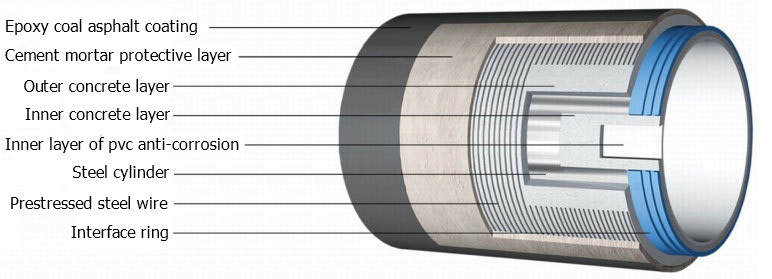

PVC lined prestressed concrete cylinder pipe is a prestressed concrete cylinder pipe (PCCP) technology improvement products, the inner wall of the PVC anti-corrosion sheet is made of polyvinyl chloride as the main raw material, with other modified accessories through high temperature and high pressure extrusion molding. At present, the PVC anti-corrosion sheets we use are divided into T-shaped keys and diamond-shaped keys (as shown in the figure below). The T-shaped key structure is suitable for vertical vibration molding process and core mold vibration molding process, and the diamond-shaped key structure is suitable for centrifugal molding process and core mold vibration molding process. It is mainly used to transport seawater, urban sewage, industrial wastewater, strong acid and alkali and other strong corrosive media.
Physical function of modified PVC anticorrosive sheet
| Physical Test Items | Test Method | Standard value |
| Tensile strength (longitudinal and transverse bond directions) | A.S.T.M.D.412 | 17.25MPa(minimum) |
| Elongation (measured at fracture) | A.S.T.M.D.412 | 225%(minimum) |
| Water-soluble substance content (24h) | A.S.T.M.D.570 | 0.05%(minimum) |
| Water absorption (75mm × 25mm, 24h) | A.S.T.M.D.570 | 0.10%(minimum) |
| Tearing force (longitudinal and transverse direction) | A.S.T.M.D.1004 | 80N/mm(minimum) |
| Hardness (Shore) | A.S.T.M.D.2240 | 54°~62° |
Chemical function of modified PVC anticorrosive sheet
| Various concentrations of chemical liquid | Test Method | Weight change rate maximum |
| 20% sulfuric acid | A.S.T.M.D.543 (7d,20 ℃) |
0.12% |
| 5% sodium hydroxide | 0.20% | |
| 5% ammonia water | 0.40% | |
| 1% nitric acid | 0.20% | |
| 1% ferric chloride | 0.60% | |
| 5% ferric chloride | 0.15% | |
| 1% sodium hypochlorite | 0.20% | |
| 2% soap and detergent | 0.40% |
